usb流量分析

kunkun2024-07-222024-11-30

usb流量

简介：

USB流量指的是USB设备接口的流量，攻击者能够通过监听usb接口流量获取键盘敲击键、鼠标移动与点击、存储设备的铭文传输通信、USB无线网卡网络传输内容等等。在CTF中，USB流量分析主要以键盘和鼠标流量为主

[NISACTF 2022]破损的flag

键盘流量分析

#!/usr/bin/env python

import sys
import os

DataFileName = "usb.dat"

presses = []

normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}

def main():
    # check argv
    if len(sys.argv) != 2:
        print("Usage : ")
        print("        python UsbKeyboardHacker.py data.pcap")
        print("Tips : ")
        print("        To use this python script , you must install the tshark first.")
        print("        You can use `sudo apt-get install tshark` to install it")
        print("Author : ")
        print("        WangYihang <wangyihanger@gmail.com>")
        print("        If you have any questions , please contact me by email.")
        print("        Thank you for using.")
        exit(1)

    # get argv
    pcapFilePath = sys.argv[1]

    # get data of pcap
    os.system("tshark -r %s -T fields -e usb.capdata 'usb.data_len == 8' > %s" % (pcapFilePath, DataFileName))

    # read data
    with open(DataFileName, "r") as f:
        for line in f:
            presses.append(line[0:-1])
    # handle
    result = ""
    for press in presses:
        if press == '':
            continue
        if ':' in press:
            Bytes = press.split(":")
        else:
            Bytes = [press[i:i+2] for i in range(0, len(press), 2)]
        if Bytes[0] == "00":
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += normalKeys[Bytes[2]]
        elif int(Bytes[0],16) & 0b10 or int(Bytes[0],16) & 0b100000: # shift key is pressed.
            if Bytes[2] != "00" and normalKeys.get(Bytes[2]):
                result += shiftKeys[Bytes[2]]
        else:
            print("[-] Unknow Key : %s" % (Bytes[0]))
    print("[+] Found : %s" % (result))

    # clean the temp data
    os.system("rm ./%s" % (DataFileName))


if __name__ == "__main__":
    main()

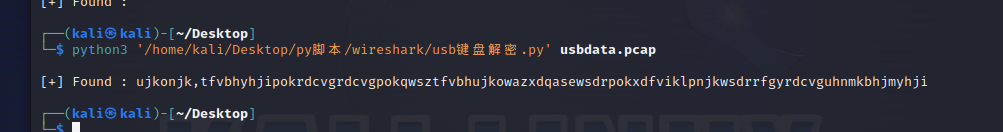

ujkonjk,tfvbhyhjipokrdcvgrdcvgpokqwsztfvbhujkowazxdqasewsdrpokxdfviklpnjkwsdrrfgyrdcvguhnmkbhjmyhji

根据键盘上所包围住的找出所对应的字符，例如：ujko所包围的字符是i

im gulf flag is welcome t fjnu

NSSCTF{welcome to fjnu}

[CISCN 2022 初赛]ez_usb

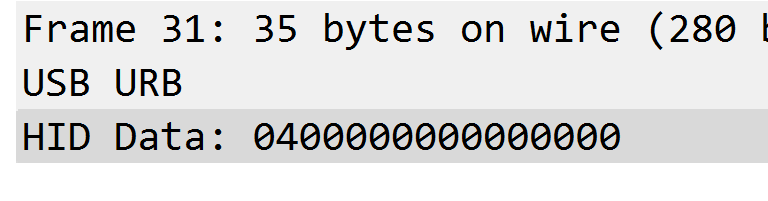

wireshark里分析可以为usb中的键盘流量

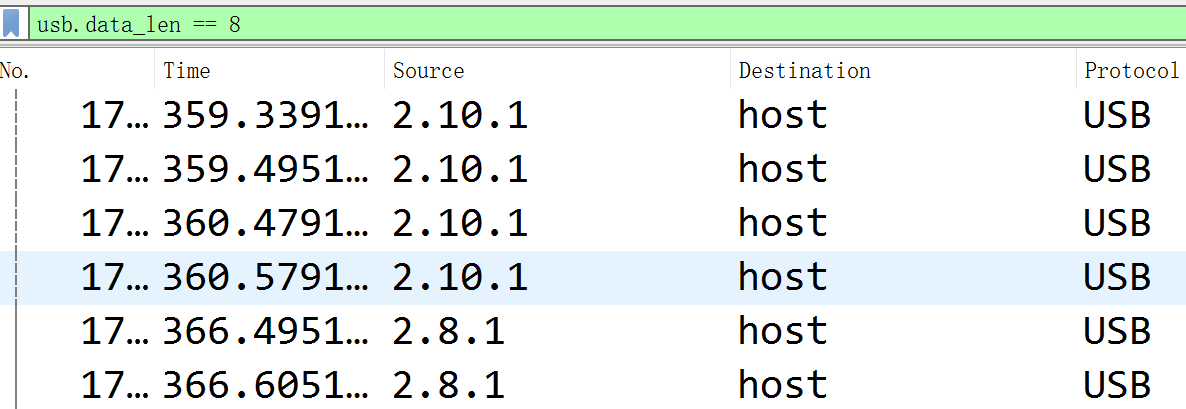

搜索8个长度的字节包,可以发现其有2.8.1和2.10.1

usb.data_len == 8

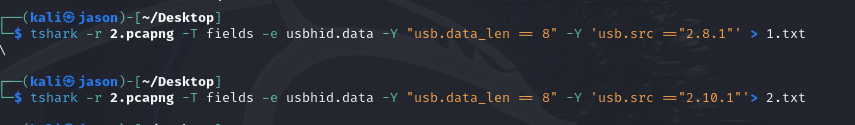

使用tshark将其导出

tshark -r 2.pcapng -T fields -e usbhid.data -Y "usb.data_len == 8" -Y 'usb.src =="2.8.1"' > 1.txt
tshark -r 2.pcapng -T fields -e usbhid.data -Y "usb.data_len == 8" -Y 'usb.src =="2.10.1"'> 2.txt

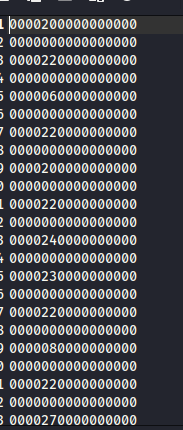

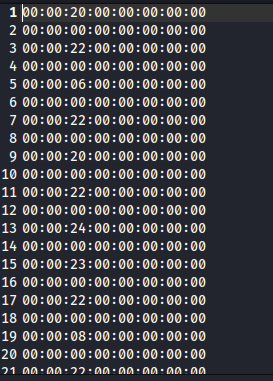

由于导出数据没有加：所以我们要给其加上：

f=open('3.txt','r')
fi=open('out3.txt','w')
while 1:
    a=f.readline().strip()
    if a:
        if len(a)==16: # 鼠标流量的话len改为8
            out=''
            for i in range(0,len(a),2):
                if i+2 != len(a):
                    out+=a[i]+a[i+1]+":"
                else:
                    out+=a[i]+a[i+1]
            fi.write(out)
            fi.write('\n')
    else:
        break

键盘流量转化：

normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}
shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}


def out(file):
    keys=open(file)
    output = []
    for line in keys:
        try:
            if line[0]!='0' or (line[1]!='0' and line[1]!='2') or line[3]!='0' or line[4]!='0' or line[9]!='0' or line[10]!='0' or line[12]!='0' or line[13]!='0' or line[15]!='0' or line[16]!='0' or line[18]!='0' or line[19]!='0' or line[21]!='0' or line[22]!='0' or line[6:8]=="00":
                 continue
            if line[6:8] in normalKeys.keys():
                output += [[normalKeys[line[6:8]]],[shiftKeys[line[6:8]]]][line[1]=='2']
            else:
                output += ['[unknown]']
        except:
            pass
    keys.close()

    flag=0
    print("".join(output))
    for i in range(len(output)):
        try:
            a=output.index('<DEL>')
            del output[a]
            del output[a-1]
        except:
            pass
    for i in range(len(output)):
        try:
            if output[i]=="<CAP>":
                flag+=1
                output.pop(i)
                if flag==2:
                    flag=0
            if flag!=0:
                output[i]=output[i].upper()
        except:
            pass
    print ('output :' + "".join(output))
    print()

out("1.txt")
out("2.txt")

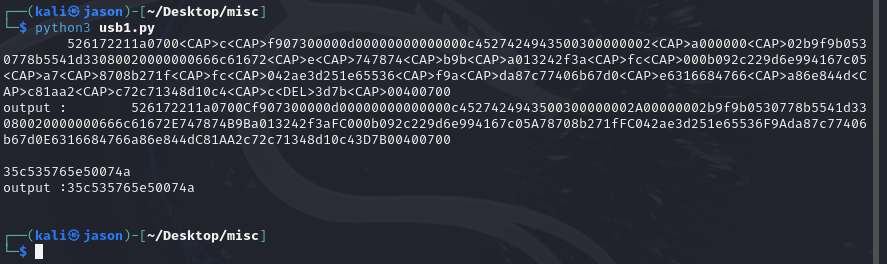

output1:16进制转化为rar压缩包

output2:rar压缩包密码

flag{20de17cc-d2c1-4b61-bebd-41159ed7172d}

[MoeCTF 2022]usb

找个类似题目练习一下

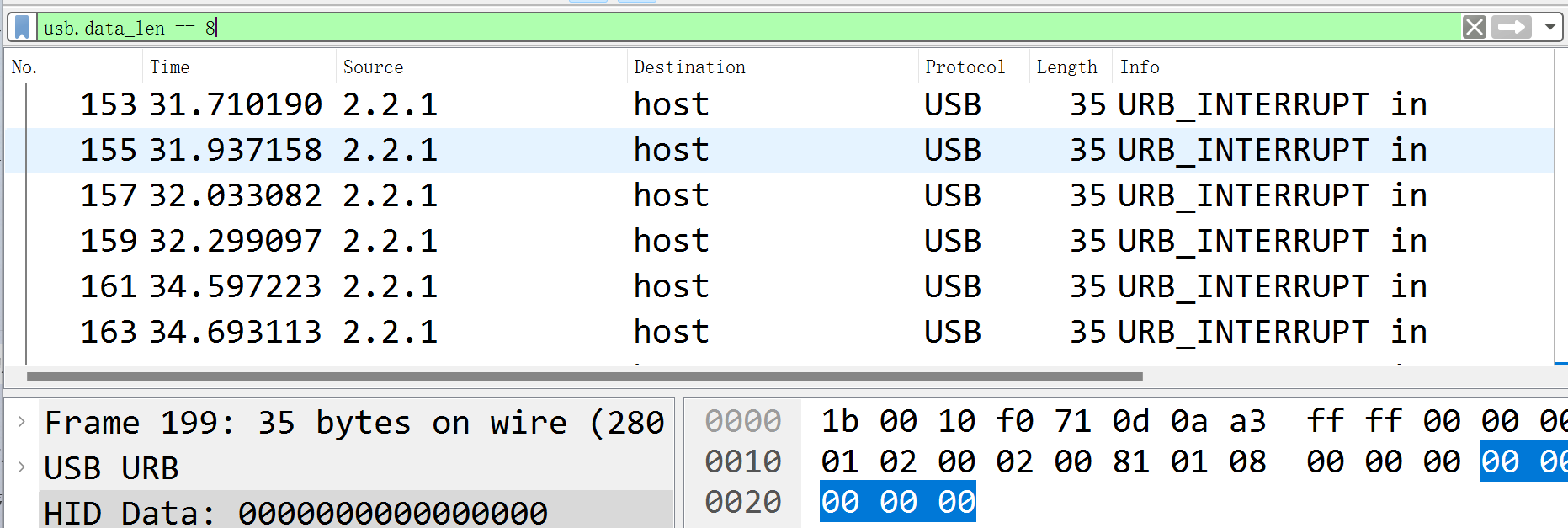

tshark -r 3.pcapng -T fields -e usbhid.data -Y "usb.data_len == 8" -Y 'usb.src =="2.2.1"' > 3.txt

加****：

f=open('3.txt','r')
fi=open('out3.txt','w')
while 1:
    a=f.readline().strip()
    if a:
        if len(a)==16: # 鼠标流量的话len改为8
            out=''
            for i in range(0,len(a),2):
                if i+2 != len(a):
                    out+=a[i]+a[i+1]+":"
                else:
                    out+=a[i]+a[i+1]
            fi.write(out)
            fi.write('\n')
    else:
        break

键盘流量转化

normalKeys = {"04":"a", "05":"b", "06":"c", "07":"d", "08":"e", "09":"f", "0a":"g", "0b":"h", "0c":"i", "0d":"j", "0e":"k", "0f":"l", "10":"m", "11":"n", "12":"o", "13":"p", "14":"q", "15":"r", "16":"s", "17":"t", "18":"u", "19":"v", "1a":"w", "1b":"x", "1c":"y", "1d":"z","1e":"1", "1f":"2", "20":"3", "21":"4", "22":"5", "23":"6","24":"7","25":"8","26":"9","27":"0","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"-","2e":"=","2f":"[","30":"]","31":"\\","32":"<NON>","33":";","34":"'","35":"<GA>","36":",","37":".","38":"/","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}
shiftKeys = {"04":"A", "05":"B", "06":"C", "07":"D", "08":"E", "09":"F", "0a":"G", "0b":"H", "0c":"I", "0d":"J", "0e":"K", "0f":"L", "10":"M", "11":"N", "12":"O", "13":"P", "14":"Q", "15":"R", "16":"S", "17":"T", "18":"U", "19":"V", "1a":"W", "1b":"X", "1c":"Y", "1d":"Z","1e":"!", "1f":"@", "20":"#", "21":"$", "22":"%", "23":"^","24":"&","25":"*","26":"(","27":")","28":"<RET>","29":"<ESC>","2a":"<DEL>", "2b":"\t","2c":"<SPACE>","2d":"_","2e":"+","2f":"{","30":"}","31":"|","32":"<NON>","33":"\"","34":":","35":"<GA>","36":"<","37":">","38":"?","39":"<CAP>","3a":"<F1>","3b":"<F2>", "3c":"<F3>","3d":"<F4>","3e":"<F5>","3f":"<F6>","40":"<F7>","41":"<F8>","42":"<F9>","43":"<F10>","44":"<F11>","45":"<F12>"}


def out(file):
    keys=open(file)
    output = []
    for line in keys:
        try:
            if line[0]!='0' or (line[1]!='0' and line[1]!='2') or line[3]!='0' or line[4]!='0' or line[9]!='0' or line[10]!='0' or line[12]!='0' or line[13]!='0' or line[15]!='0' or line[16]!='0' or line[18]!='0' or line[19]!='0' or line[21]!='0' or line[22]!='0' or line[6:8]=="00":
                 continue
            if line[6:8] in normalKeys.keys():
                output += [[normalKeys[line[6:8]]],[shiftKeys[line[6:8]]]][line[1]=='2']
            else:
                output += ['[unknown]']
        except:
            pass
    keys.close()

    flag=0
    print("".join(output))
    for i in range(len(output)):
        try:
            a=output.index('<DEL>')
            del output[a]
            del output[a-1]
        except:
            pass
    for i in range(len(output)):
        try:
            if output[i]=="<CAP>":
                flag+=1
                output.pop(i)
                if flag==2:
                    flag=0
            if flag!=0:
                output[i]=output[i].upper()
        except:
            pass
    print ('output :' + "".join(output))
    print()

out("3.txt")

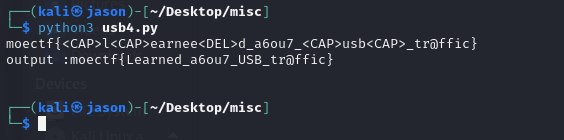

moectf{Learned_a6ou7_USB_tr@ffic}
